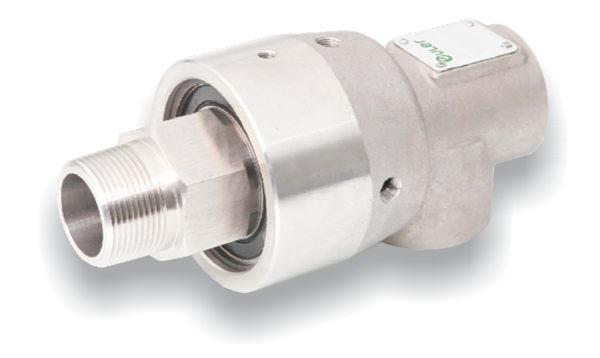

WS/WSX Water Service Rotary Union
Rotary unions may look the same, but Euler's engineers know that small differences in materials and design make big differences in performance. That's why Euler's engineers test new materials and seals continuously.
The WS water unions have materials and a design developed thru lab and field testing. The carbon graphite to carbon seals provide long service on industrial water applications, and exceptional dry running capabilities. The stainless steel construction makes the WS unions a natural for food machinery, steel making, semi-conductor where stainless steel is required or desirable for its ruggedness
The WSX Silicon carbide seals are used for applications that may have contaminated water containing abrasives.
Benefits:
- All wetted metal components are 304 stainless steel.
- Directly interchangeable with most competitive water unions.
- Easily field repairable.
- RoHS Complaint.
- Stainless steel elbows available for duoflow applications.
- The industry best warranty, 3 Years.
| Media | Products | Size Range | Max Pressure | Max Temperature | ||
|---|---|---|---|---|---|---|
| PSI | BAR | F | C | |||
| Hot/Cold Water | WS Rotary Union | 3/8” - 2” | 150 | 10.3 | 225 | 107 |
| WSX Rotary Union | 3/8” - 2” | 150 | 10.3 | 225 | 107 | |
| Abrasive Application | WSX Rotary Union | 3/8” - 2” | 150 | 10.3 | 225 | 107 |
Duoflow Application:
WS/WSX Rotary Union + Duoflow Elbow
